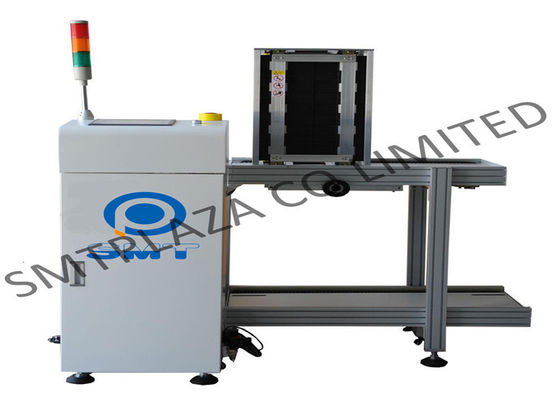

Small Wheel Container Loader Surface Mount Machine Automatic PCB Magazine Loader

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Small Wheel Container Loader Surface Mount Machine Automatic PCB Magazine Loader

Product Details:
Place of Origin: China
Brand Name: FSR
Certification: CE ISO
Model Number: FSR-250
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Packaging Details: Woodcase packing with foam
Delivery Time: 20days after downpayment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Brand: OEM Model: PCB Loader
Applicable PCB Size: 50*50~~320*250mm Control System: PLC
Operation Interface: SMEMA Manazine Size: 355*320*562mm
High Light:

smt equipment

,

surface mount machine

smt board handling equipment Automatic loader and unloader pcb magazine loader pcb loading machine in smt LED production line

FEATURES:

  • Mitsubishi PLC Control system.
  • Touch screen operation.
  • multiple pitches selectable (touch screen operation).
  • Direction from left to right, or right to left (optional).
  • Transmission system : Taiwan TBI Ball Screw +30
  • Brake system: Adopt Taiwan Dongbang high precision motor mm bearing steel rod.
  • PCB positioning: High-precision Dongbang motor + photoelectric sensor
  • Abnormal fault diagnosis, sound, tri-color lamp and other alarm functions.
  • CE certified.
  • SMEMA compliant



Technical parameters
Function This unit is used to send PCBs out from magazine to SMT production line
Applicable PCB size 50*50~~320*250mm
Manazine size 355*320*562mm
Automatic replacement of the PCB rack yes
Magazine number Transport up:1pcs,transport down:1ps,(or customized)
Step pitches select 1-4(10mm step pitches)
PCB loading time Approx 6 seconds
Magazine change-over time Approx 30 seconds
Transport direction Left to right/right to left(optional)
Transport height 900±20mm(or customized)
Air pressure 0.4-0.6Mpar, MAX 10L/min
Power supply 100-230V AC(customized) single phase, MAX 300V/A
Specifications
Model No FSR-250 FSR-330 FSR-390 FSR-460
PCB size (L×W)~(L×W)mm (50x50)~(350x250) (50x50)~(455x330) (50x50)~(530x390) (50x50)~(530x460)
Machine size (L×W×H)mm 1180×700×1250 1550×830×1200 1750×920×1200 1750×990×1200
Magazine size (L×W×H)mm 355×320×563 460×400×563 535×460×570 535×530×570
Weight 110kg 135kg 155kg 175kg
Send highly 900±20mm
